Travelodge

Cristolite™

Download Project Case Study

Exterior Facade

Location
Client
15 months
5000 m²

A complete facade design, manufacture and installation for an 8 storey building in the heart of London. Encompassing fenestration, insulation and both terracotta and lightweight natural stone cladding. This was truly a complete facade package!

SFS framing pre-assembled with window units. This provided a rapid installation solution for the 450 windows used throughout the building.

Insulation panels pre-designed and cut to size were simply fixed on site, negating any site assembly.

Curtain walling throughout on ground levels and staircases.

Over 3000m² of terracotta designed, manufactured and installed. Areas included: all four faces of the exterior facade, internal courtyard and notably the extensive design work on ‘floating fins’

Over 2000m² of Cristofoli’s own lightweight natural stone designed, manufactured and installed. Areas included all four faces of the exterior facade, stone cappings and window cills and notably aligned machine groove down each face.

Moleanos Limestone

Sand Blasted Finish

See Materials

Travelodge Aldgate facade at dusk showing the external Moleanos limestone cladding.

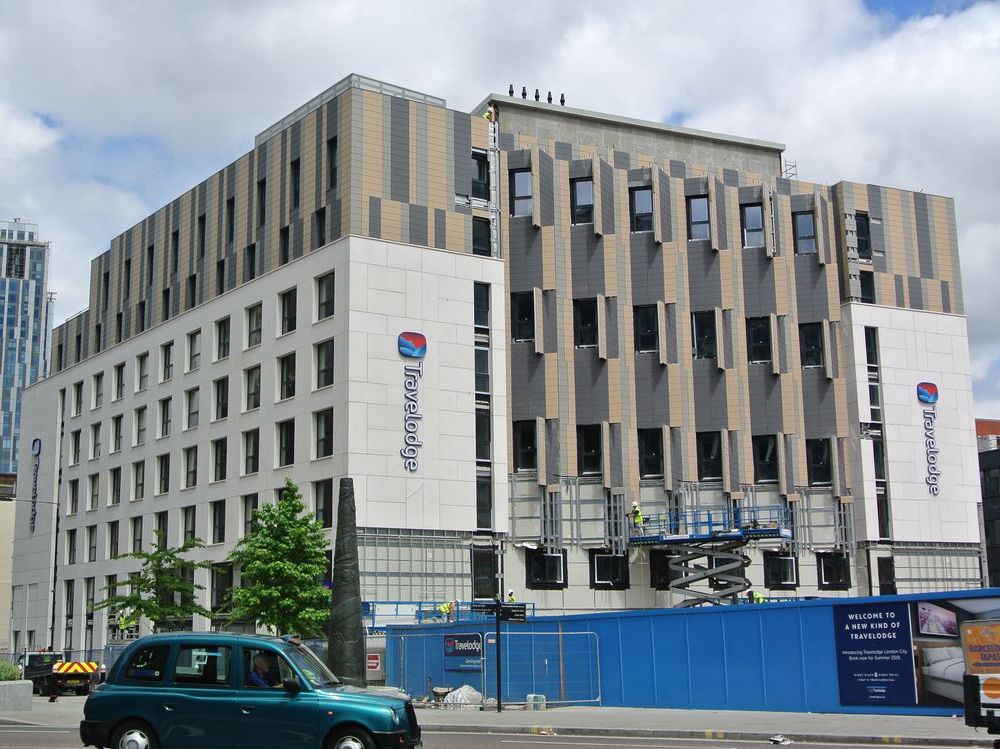

Image of the Travelodge Aldgate building showing the lightweight cladding and the full facade. The installation is near completion with visible scaffolding and construction materials on-site.

Close up of the Travelodge Aldgate building showing terracotta elements and windows on the exterior facade.

Image of the Travelodge Aldgate building during construction, partway through the installation of lightweight cladding and the full facade. The building's exterior features partially installed panels, exposing the subframe and insulation layers, with visible scaffolding and construction materials on-site.
